Introduction
Crawler mobile crushing plant is the company to meet the market demand, independent research and development of the full hydraulic drive crawler car chassis with mobile crushing and screening equipment. Crawler type moving crusher is mainly used for metallurgy, chemical industry, building materials, hydropower and other materials often need to relocate the operation, especially for highways, railways, hydropower projects such as the operation of the stone, the user can be processed according to the type of raw materials, Size and finished material requirements vary in a variety of configurations.
Advantage
1. Excellent performance of the power system, the use of Cummins diesel engine, low fuel consumption, low noise, reliable performance, providing a reliable, economical, environmentally friendly power source. The engine can be installed military low temperature preheat start device, so that equipment in the low temperature environment -25C ° can also be easy to start.
2. Full steel structure of the chassis, with high strength, lower than the characteristics of ground pressure, the mountains, wetlands have a good adaptability.
3. Large torque travel motor, driving force, high reliability. The main system of hydraulic power system (pump, valve, etc.) used in Japan imported components, for the walking system to provide a reliable power to protect the system, the use of full power variable open hydraulic system, excellent performance, high reliability, can make full use of the engine power,
4. Import servo pilot operating system, light operation, control accuracy, can achieve the infinite speed of walking.
5. efficient and mature crushing and screening equipment selection, compact structure, stable performance. Screening equipment with 20 ° angle, efficient and reliable screening.
6. Mixed pressure energy device, dual power intelligent switch, can make full use of local power resources, saving operating costs, reduce CO2 and nitrogen oxide emissions. Once the power interruption or undervoltage is automatically switched diesel generator power generation, to ensure continuous operation of equipment.

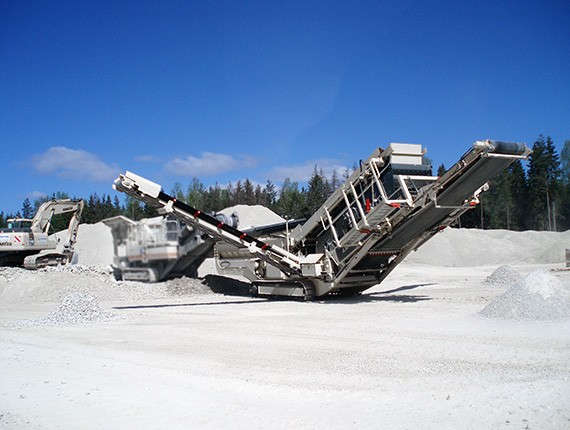

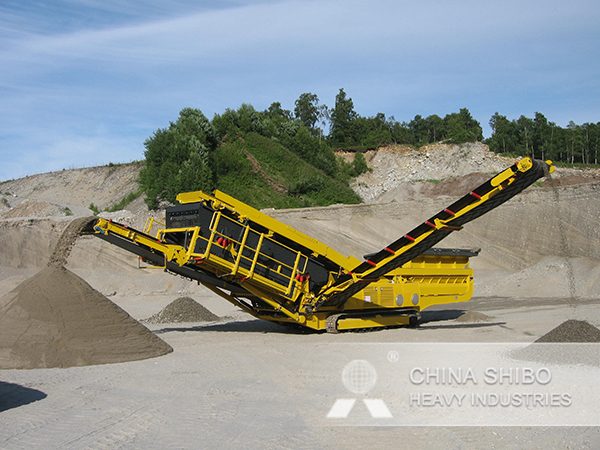

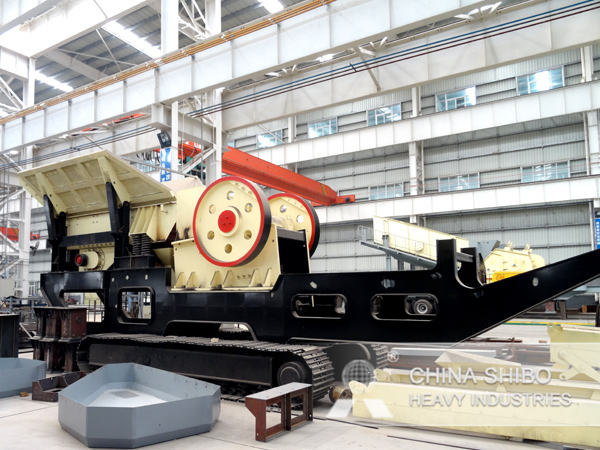

Gallery
Parameter
| Performance parameters | Device Configuration | Size parameters | ||||||||||||||
| Item | Motor Power | Climbing degree | Maximum walking speed | Feeder model | Equipment model | Minimum gap | Job height | Job width | Length of work | Transport height | Transport widthW1 | Length of transportL1 | Crawler width | Track track | Track length | Crawler wide project |
| Unit | kw | % | Km/h | mm | mm | mm | mm | mm | mm | mm | mm | mm | 4250 | mm | ||
| Y2S1848L | 92 | 30 | 1.39 | 2YZS1848 | 320 | 4500 | 3150 | 15800 | 3500 | 3150 | 12500 | 600 | 2390 | 4250 | 2990 | |
| YG938E57L | 92 | 30 | 1.39 | GZD960×3800 | PE500×750 | 320 | 3800 | 3150 | 13500 | 3300 | 3000 | 13000 | 600 | 2390 | 4250 | 2990 |
| YG938E69L | 150 | 30 | 1.39 | GZD960×3800 | PE600×900 | 320 | 4000 | 3150 | 14000 | 3600 | 3600 | 13000 | 600 | 2390 | 4250 | 2990 |
| YGD15Y75L | 180 | 30 | 1.39 | GLD1500/4 | CS75 | 320 | 3900 | 3150 | 14500 | 3900 | 3900 | 11000 | 600 | 2390 | 4250 | 2990 |
| YG938F124L | 220 | 30 | 1.39 | GZD960×3800 | GZD960×3800 | 320 | 4400 | 3150 | 14000 | 3800 | 3800 | 12200 | 600 | 2390 | 4250 | 2990 |
