Double Roller Crusher

Double Roller crusher is widely used in the current mining market. It is available for clinker mineral, coke, slag, shale, limestone and so on

Application:PG Double roller crusher is mainly used to crush material which is below the medium hardness.

Double Roller Crusher

Introduction

PG Double roller crusher is mainly used to crush material which is below the medium hardness, such as clinker mineral, coke, slag, shale, limestone and so on. It is the most suitable for small and medium non-metal mines and chemical industries to undergo secondary and fine crushing. It has the following features: simple structure, reliable performance, less flour.


Advantage

1. Adaptable and flexible application

2. the use of wear-resistant materials,more durable

3. High production and high crushing efficiency

4. Equipped with dustproof and silencing device, zero dust and zero noise.

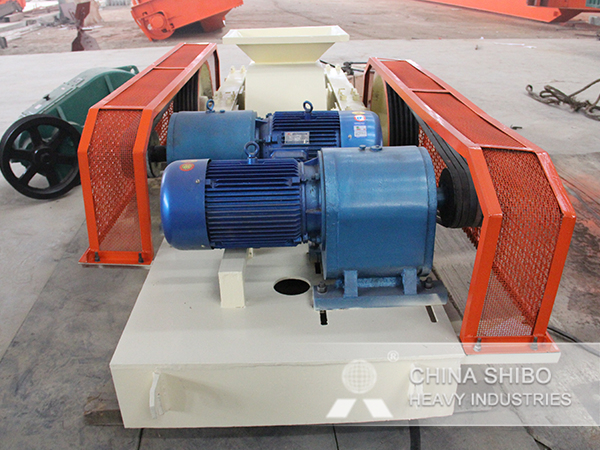

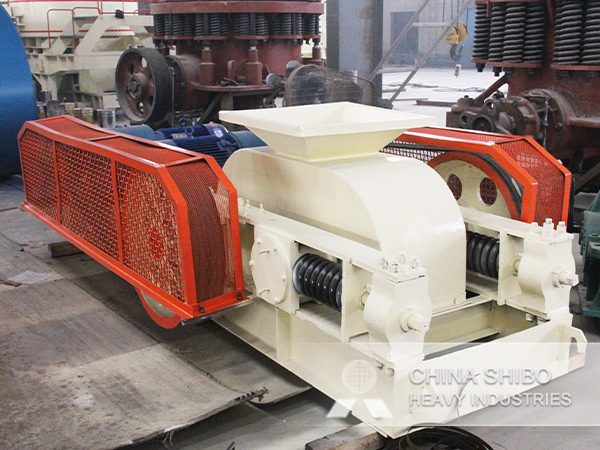

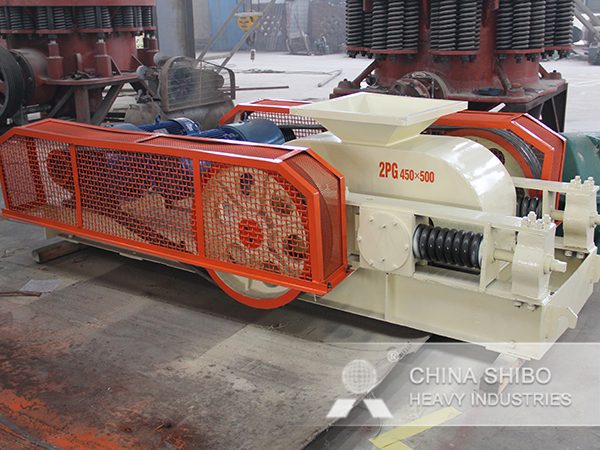

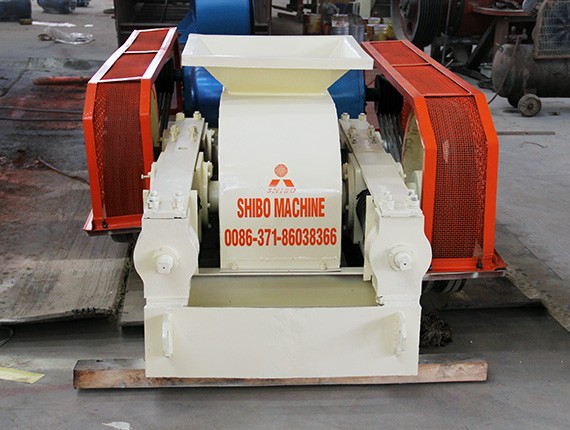

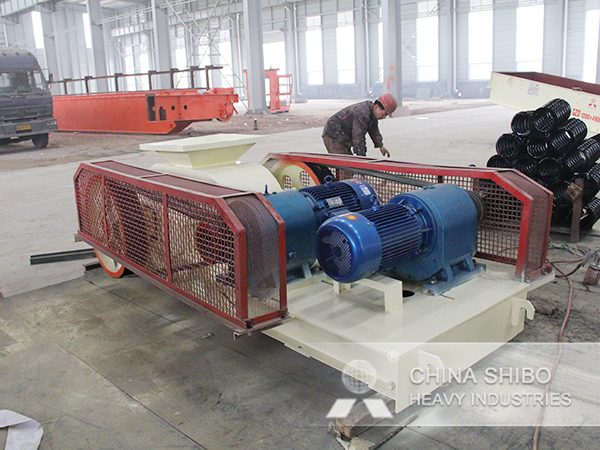

Double Roller Crusher

Double Roller Crusher

Double Roller Crusher

Double Roller Crusher

Parameter

Model 2PG400×250 2PG450×500 2PG610×400 2PG700×400 2PG600×800
Roller Diameter(mm) 400 450 610 700 600
Roller Length(mm) 250 500 400 400 800
Feeding Size(mm) ≤25 ≤100 ≤80 ≤100 ≤130
Discharging Size(mm) 2-8 6-60 8-30 5-30 8-125
Capacity(t/h) 5-10 20-55 30-70 30-100 60-125
No. of Roller 2 2 2 2 2
Roller Speed(r/min) 180 64 75 95 50
Weight(t) 1.1 3.8 3.5 7.8 8.34
Overall Dimension (mm) 1215×834×830 2260×2200×766 2235×1722×810 4300×1200×1200 2780×3065×1310
Power Model Y160L-6 Y160L-8 Y225M-6 Y200L-4 Y225M-B
Power (kw) 2×5.5 2×11 2×15 2×18.5 2×22
