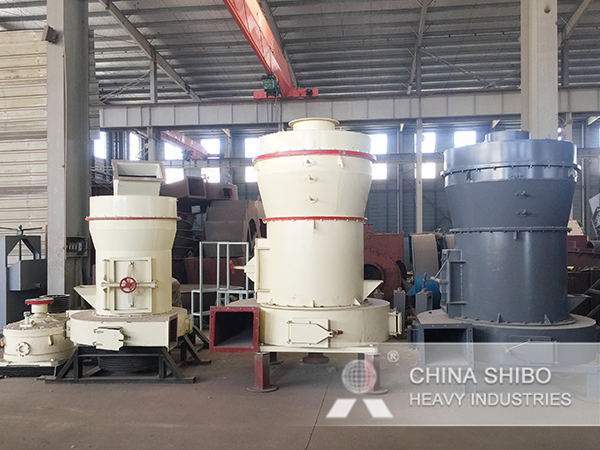

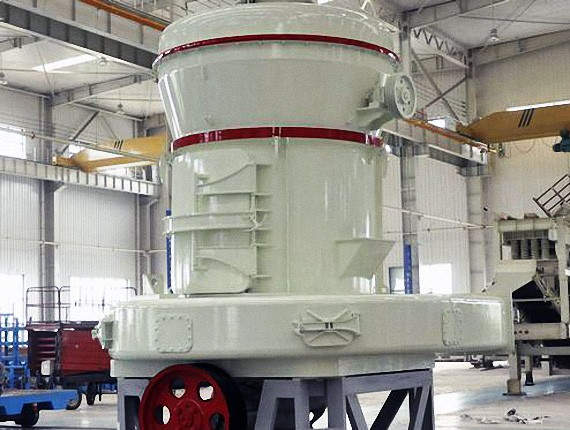

European Type Grinding Mill

European Type Grinding Mill is widely used in the current mining market. It is available for Limestone, calcite, barite, dolomite, potassium feldspar, bentonite, medical stone, rock phosphate, manganese ore, iron ore, quartz, active carbon, carbon black, ceramic, coal, etc.

Application:Cement, coal , power plant desulfurization, metallurgy, chemical industry, non-metallic mineral, construction material, ceramics.

European Type Grinding Mill

Introduction

European grinding mill is to absorb the European advanced grinding technology and philosophy, with bevel gear overall transmission, internal thin oil lubrication system, curved air duct and many other improved new grinding equipment. Large production, low energy consumption, advanced production capacity of the European grinding mill to meet the customer demand for 1.6-0.045mm fine powder production.

European type grinding mill

Advantage

  1. Efficient

  Bevel gear overall drive reduces noise and increases drive efficiency and capacity.Inner automatic thin-oil lubricating system makes better lubrication for bearings

  2. Economical

  Edge-replaceable shovel saves you money and frequency-control separator and cyclone powder collector ensure high capacity

  3. Advanced

  Arc air channel reduces energy consumption and intelligent control ensures better operation

  4. Environmentally friendly

  Unique air recycling system and dust collector make clean environment

European Type Grinding Mill

European Type Grinding Mill

European Type Grinding Mill

European Type Grinding Mill

Parameter

Model Grinding Ring Diameter (mm) Main Power(kw) Separator Power(kw) Centrifugal fan Power(kw) Main mill Rotating speed (r/min) Feeding Size(mm) Finished Powder Sizes(mm) Capacity(t/h) Overall Dimension(MM)
MTW110T Φ1100 55-75 7.1-11 55-75 120 ≤30 1.6~0.045 The fineness is 0.038 3~10 8425×7933×8642
MTW138T Φ1380 90-110 18.5-30 90-132 96 ≤35 1.6~0.045 The fineness is 0.038 6~20 10920×9470×10227
MTW158T Φ1580 110-132 22-30 110-132 85 ≤35 1.6~0.045 The fineness is 0.038 8~28 11327×9730×9540
MTW175T Φ1750 162-200 30-45 185-200 75 ≤40 1.6~0.045 The fineness is 0.038 10~35 12195×9555×9916
MTW215T Φ2150 280-315 72-90 280-315 65 ≤50 1.6~0.045 The fineness is 0.038 20~50 12922×12810×11226
