Introduction
Mobile impact crusher can crush all kinds of coarse, medium and fine material which compressive strength bellow 350MPa (granite, Limestone, concrete, etc.).Large feeding size , high crushing capacity,high production efficiency.Final product shape is cube, and particle shape is good. In the processing of sand and stone mixture, the advantages are obvious, especially the limestone crushing. Through the impact crusher, the stone specification standard can be effectively achieved.
Advantage
1.Easy operation and maintenance
2.Excellent crushing performance
3.Reliable and stable quality assurance
4.High durability and higher working time
5.Lightweight and reasonable structural design

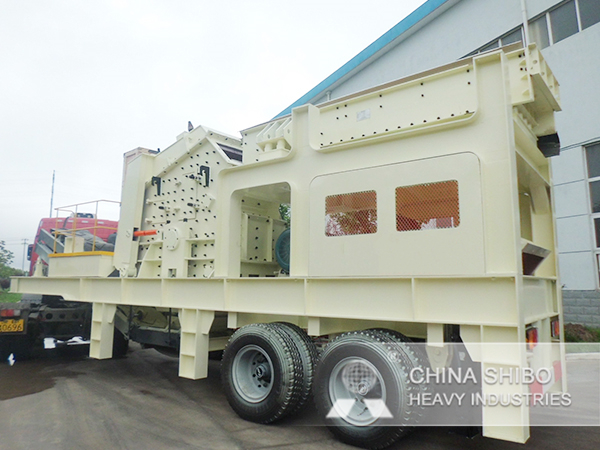

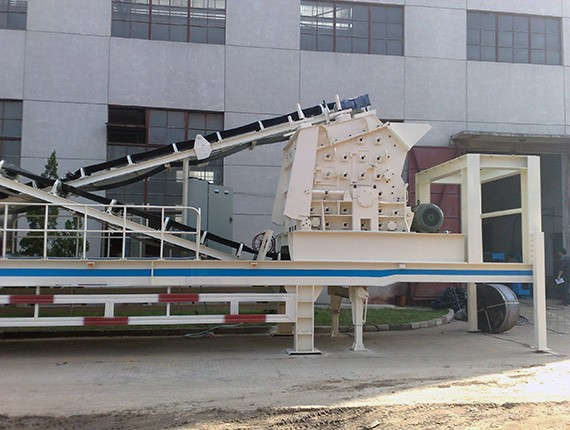

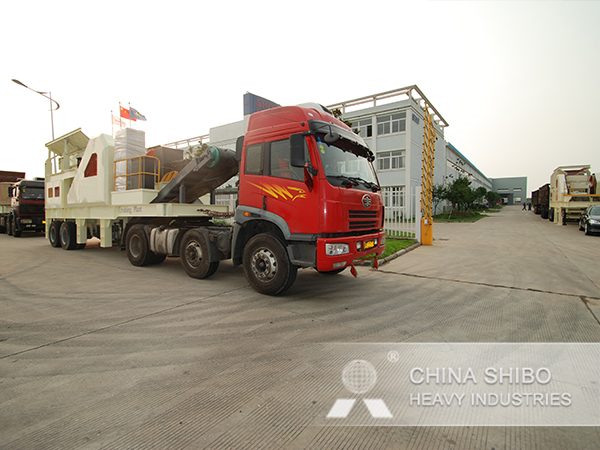

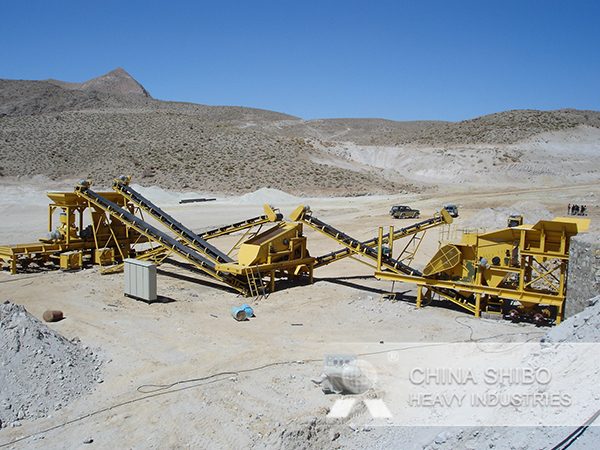

Gallery
Parameter
| Item | Unit | MF1010 | MF1210 | MF1214 | MF1315 |
| Transportation Length | mm | 10800 | 11900 | 13100 | 13100 |
| Transportation Width | mm | 2480 | 2550 | 2800 | 2900 |
| Transportation Height | mm | 3900 | 3900 | 4450 | 4450 |
| Max Length | mm | 11200 | 12100 | 13300 | 13300 |
| Max Width | mm | 2900 | 2900 | 2950 | 2950 |
| Max Height | mm | 4100 | 4100 | 5200 | 5200 |
| Weight | t | 28 | 39 | 44 | 54 |
| Tire Configuration | Dual-axial | Dual-axial | Dual-axial | Dual-axial | |
| Crusher | PF-1010 | PF-1210 | PF-1214 | PF-1315 | |
| Max Feeding Size | mm | 300 | 300 | 300 | 350 |
| Capacity | t/h | 70-130 | 70-130 | 90-180 | 120-250 |
| Vibrating Feeder | GZD960x3800 | GZD960x3800 | GZD1100x4200 | GZD1100x4200 | |
| Main Belt Conveyor | B800x8M | B800x8.5M | B1000x9M | B1000x9M | |
| Side-Opening(Optional) | B450x3M | B450x3.2M | B500x3.5M | B500x3.5M | |
| Generator Set(Optional) | kw | 200 | 200 | 250 | 330 |
| Inor-Separator(Optional) | RCMD(C)-8 | RCMD(C)-8 | RCMD(C)-10 | RCMD(C)-10 |
