Introduction
single cylinder cone crusher is divided into standard type and short-headed type which are used for medium crushing and fine crushing respectively. It is suitable for crushing all kinds of ores and rocks with high and over-medium hardness in medium,construction,water and electricity,transportation,chemistry and building material industry.Especially in the metal ore and construction of sand and gravel material is the most widely used.
Advantage
1.stable performance and Less failure
2.Compact structure and easy maintenance
3.Overload protection and good bearing lubrication
4.High efficiency,35% ~ 60% higher than spring cone crusher
5.Just replacing fixed cone can achieve various cavity shapes for fine crushing
6.Good quality final material,increas the cube proportion and uniform grain,reduce flake stone needles

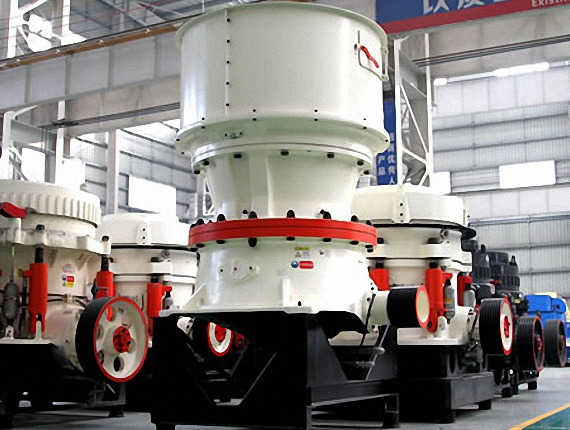

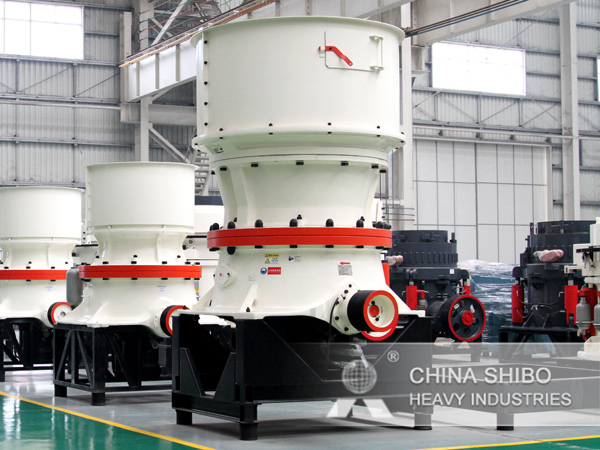

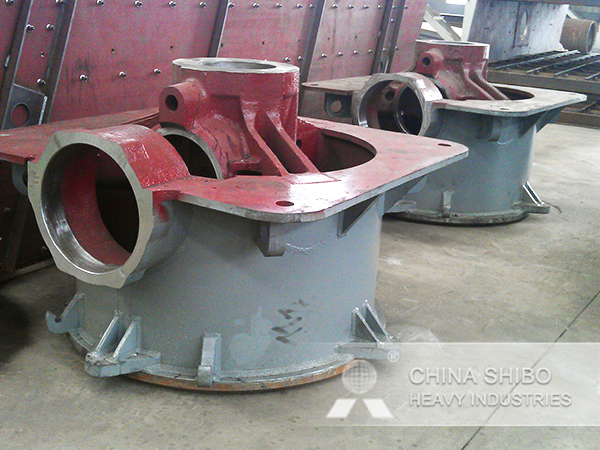

Gallery
Parameter
| Model | Cavities | Feeding Size(mm) | Adjusting Range of Discharge Opening (mm) | Capacity(t/h) | Power(kw) |
| DG100 | Coarse | 130 | 20～50 | 80～190 | 75～90 |
| Medium | 90 | 16～40 | 60～125 | ||
| Fine | 50 | 10～30 | 40～100 | ||
| DG200 | Coarse | 250 | 20～70 | 160～280 | 132～160 |
| Medium | 160 | 16～50 | 120～230 | ||
| Fine | 70 | 10～30 | 100～210 | ||
| DG300 | Coarse | 350 | 30～80 | 200～500 | 220～250 |
| Medium | 200 | 20～60 | 160～355 | ||
| Fine | 130 | 16～30 | 130～280 | ||
| DG500 | Coarse | 500 | 40～120 | 350～800 | 280～315 |
| Medium | 350 | 30～80 | 260～650 | ||
| Fine | 160 | 20～50 | 200～510 |
